Specifications:
Specifications: |
|

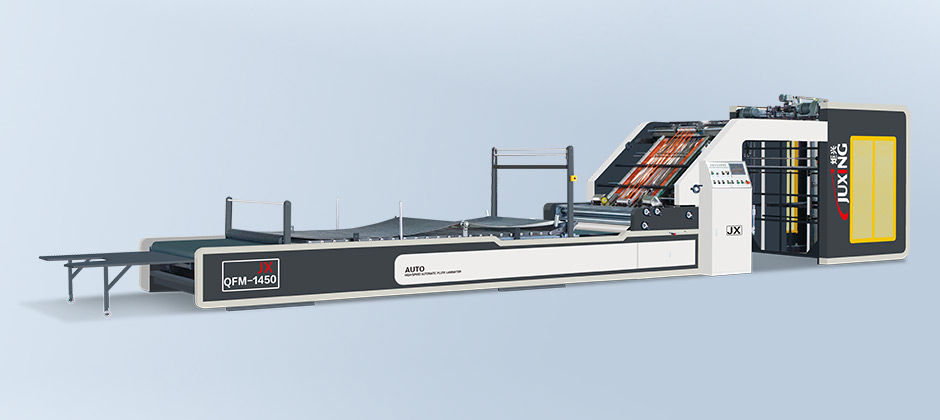

| Model | QFM1450 |
| Max. Sheet Size(mm) (mm) | 1450X1400 |
| Min. Sheet Size(mm) (mm) | 360X360 |
| Thickness of Face Paper(g/m²) | 120~450 |
| Thickness of Bottom Paper | ABCEF 3&5 Ply |
| Speed of Lamination(m/min) | 150 |
| Front lay Laminate Error (mm) | ±1 |
| Total Weight(kg) | 6000 |
| LxWxH(mm) | 13500x2250x2480 |
| Operation Space(mm) | 3100x14000 |
| Total Power(kw) | 18 |
| Power Supply | 3~380V（50Hz） |
| Model | QFM1700 |
| Max. Sheet Size(mm) | 1700X1600 |
| Min. Sheet Size(mm) | 360X360 |
| Thickness of Face Paper(g/m²) | 120~450 |
| Thickness of Bottom Paper | ABCEF 3&5 Ply |
| Speed of Lamination(m/min) | 150 |
| Front lay Laminate Error (mm) | ±1 |
| Total Weight(kg) | 7000 |
| LxWxH(mm) | 13500x2500x2480 |
| Operation Space(mm) | 3400x14000 |
| Total Power(kw) | 18 |
| Power Supply | 3~380V（50Hz） |
Features:
The machine is perfectly combined motion control system with servo system and the effective speed can reach 12000 sheets per hour.
In the case of face paper extruding condition, the operator can adjust the amount easily by inputting data to man-machine interface.
This machine is suitable for various type of corrugated and cardboard lamination.
The electrical components adopts imported parts with good stability.
Using frequency speed regulation system to realize the stepless speed change.
The automatic glue system improves the degree of automation.
