Automatic Cardboard Laminator Machine

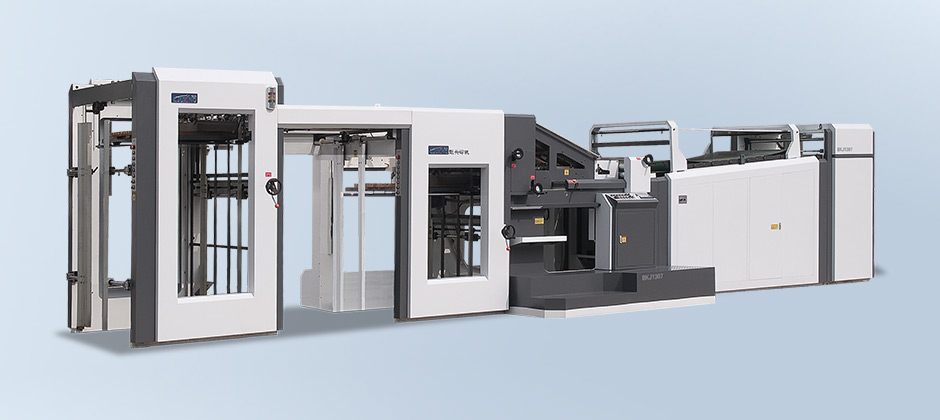

BKJ1307/1310/1410 Automatic Cardboard Laminator Machine

Machine · Specification

Specification

Model 1307
Max. Sheet Size(L×W)(mm) 1280×700
Min. Sheet Size(L×W) (mm) 500×350
Thickness of Face Paper (g/m²) 100~800
Thickness of Bottom Paper (g/m²) 200~2000
Speed of Laminating (p/min) 9000 p/h
Front Lay Laminate Error (mm) ±0.5①
Total Weight (kg) 9000
LxWxH(mm) 11830x2300x2850
Total Power (kw) 16.5
Power Supply 3~380V(50Hz)
Model 1310
Max. Sheet Size(L×W) (mm) 1280×950
Min. Sheet Size(L×W) (mm) 500×350
Thickness of Face Paper(g/m²) 100~800
Thickness of Bottom Paper(g/m²) 200~2000
Speed of Laminating(p/min) 6000p/h
Front Lay Laminate Error (mm) ±0.5①
Total Weight 9000
LxWxH(mm) 11830x2300x2850
Total Power (kw) 16.5
Power Supply 3~380V(50Hz)
Model 1410
Max. Sheet Size(L×W) (mm) 1410×1000
Min. Sheet Size(L×W) (mm) 500×400
Thickness of Face Paper (g/m²) 100~800
Thickness of Bottom Paper(g/m²) 200~2000
Speed of Laminating(p/h) 6000p/h
Front Lay Laminate Error (mm) ±0.5①
Total Weight (kg) 11000
LxWxH(mm) 15130x2300x2850
Total Power (kw) 24.5
Power Supply 3~380V(50Hz)

Feature · Introduction

Features of Laminator

BKJ1307/1310/1410 is specialized in the production of high-precision automatic cardboard lamination for thin paper, cardboard, gray cardboard, art paper, etc. to meet the demands of printed cardboard lamination. It has the features of high precision, non-deformation and flatness.

The main parts of the machine come from well-known brand either from abroad or domestic with long service life and good stability. Electrical components use international famous brands to ensure the reliability. The machine is equipped with five sucking and four forwarding feeder, differential speed registration system, synchronization lamination and other innovative design. It is made according to the European CE standards. The machine can also do automatic monitoring, automatic detection, fault display and alarming from feeding, registration, lamination to delivery.

Part · Introduction

  • +Five sucking and four forwarding high precision feeder:

    We use five sucking and four forwarding paper feeder to make paper output more stable and reliable. You can adjust the height or angle of each sucker according to the paper quality to make the machine running with high efficiency.

  • +Electrical Part:

    The man-machine interface can reflect the status of running or malfunction timely. The well-known brand electrical elements ensure the stable performance of the machine.

  • +Driving Part:

    We use synchronous tooth belt, so that the machine can run more smoothly with higher accuracy.

  • +Chasing registration and side lay alignment structures:

    Using the different speed between conveying and front lay to register the sheets precisely. The side lay are synchronized with the paper conveying.

  • +Gluing Part:

    The unique anilox-type roller makes glue even and saving. Compare with traditional anilox roller, it can save 5 gram glue per square meter.
