Machine · Specifications
Specifications |
|
| Model | QTM1300 |
| Max. Sheet Size(mm) | 1300X1300 |
| Min. Sheet Size(mm) | 500X440 |
| Thickness of Face Paper(g/m²) | 120~450 |
| Thickness of Bottom Paper | ABCEF 3&5 Ply |
| Speed of Lamination(m/min) | 153 |
| Front lay Laminate Error (mm) | ±0.75 |
| Total Weight(kg) | 8700 |
| LxWxH(mm) | 14180x2200x2850 |
| Total Power(kw) | 13.9 |
| Power Supply | 3~380V（50Hz） |

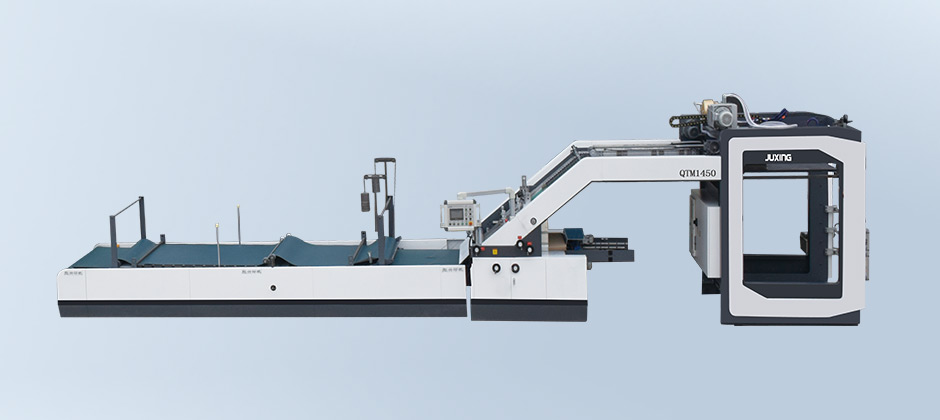

| Model | QTM1450 |
| Max. Sheet Size(mm) | 1450X1450 |
| Min. Sheet Size(mm) | 500X440 |
| Thickness of Face Paper(g/m²) | 120~450 |
| Thickness of Bottom Paper | ABCEF 3&5 Ply |
| Speed of Lamination(m/min) | 153 |
| Front lay Laminate Error (mm) | ±0.75 |
| Total Weight(kg) | 9500 |
| LxWxH(mm) | 14180x2300x2850 |
| Total Power(kw) | 13.9 |
| Power Supply | 3~380V（50Hz） |
| Model | QTM1650 |
| Max. Sheet Size(mm) | 1650X1600 |
| Min. Sheet Size(mm) | 500X440 |
| Thickness of Face Paper(g/m²) | 120~450 |
| Thickness of Bottom Paper | ABCEF 3&5 Ply |
| Speed of Lamination(m/min) | 153 |
| Front lay Laminate Error (mm) | ±0.75 |
| Total Weight(kg) | 10500 |
| LxWxH(mm) | 14330x2500x2850 |
| Total Power(kw) | 13.9 |
| Power Supply | 3~380V（50Hz） |
Features:
The machine is perfectly combined motion control system with servo system. With patent technology movement structure of our company, the machine idle speed can achieve to 15000 sheets per hour, and the effective speed can reach 12000 sheets per hour. In the case of face paper extruding condition, the operator can adjust the amount easily by inputting data to man-machine interface.
The machine is equipped with side puller lay to control the side precision of laminated sheet.
This machine is suitable for various type of corrugated and cardboard lamination.
The electrical components adopts imported parts with good stability.
Using frequency speed regulation system to realize the stepless speed change
The automatic glue system improves the degree of automation.
