Automatic Die-cutting and Creasing Machine

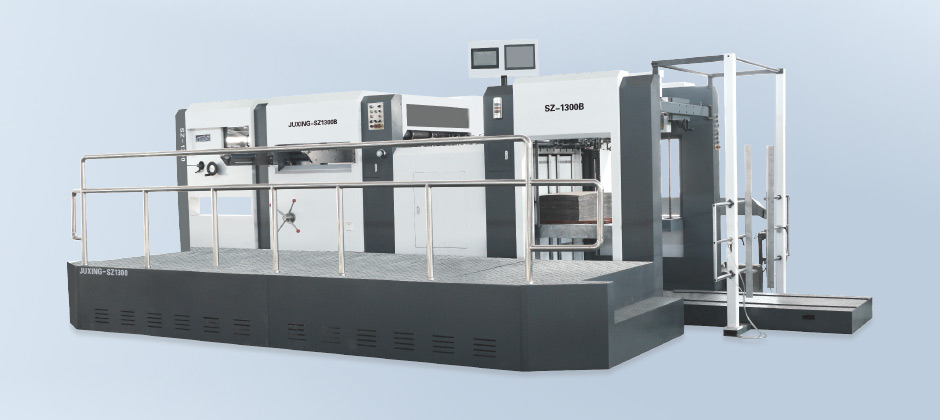

QMY1200/1300/1500(SZ1200/1300/1500)Automatic Die-cutting and Creasing Machine

Machine · Specifications

Specifications

Model SZ1200B
Max.Paper Size (mm) 1200×780
Min.Paper Size (mm) 350×350
Max.Cutting Size (mm) 1180×760
Weight(kg) 15000
Total Power (kw) 23.5
Speed(p/hr) 0-6000
Cardboard Sheet Thickness (g/m²) 250-800①
Corrugated Sheet Thickness (mm) 1-7
Die-cutting Pressure (T) 300
Die-cutting Precision (mm) ±0.5①
Dimension (mm) 7000×4230×2250
Power Supply 3~380V(50Hz)
Model SZ1300B
Max.Paper Size (mm) 1300×960
Min.Paper Size (mm) 400×410
Max.Cutting Size (mm) 1280×940
Weight (kg) 17000
Total Power (kw) 23.5
Speed (p/h) 0-5500
Cardboard Sheet Thickness (g/m²) 250-800①
Corrugated Sheet Thickness (mm) 1-7
Die-cutting Pressure (T) 300
Die-cutting Precision (mm) ±0.5①
Dimension (mm) 7500×4530×2245
Power Supply 3~380V(50Hz)
Model SZ1500B
Max.Paper Size (mm) 1500×1100
Min.Paper Size (mm) 540×410
Max.Cutting Size (mm) 1480×1080
Weight (kg) 0-5000
Total Power (kw) 27.5
Speed (p/hr) 0-4500
Cardboard Sheet Thickness (g/m²) 250-800①
Corrugated Sheet Thickness (mm) 1-7
Die-cutting Pressure (T) 300
Die-cutting Precision (mm) ±0.5①
Dimension (mm) 8000×4795×2245
Power Supply 3~380V(50Hz)
